Deployment of nginx streaming server

Packages

nginx-1.2.3.tar.gz # nginx server

pcre-7.9.tar.gz # regular expression supprot

zlib-1.2.3.tar.gz # liunx下的JFFS文件系统制作工具

yamdi-1.9.tar.gz # The tools can support for draging process bar

openssl # openssl libiary

install upper packages,the process is to uncompress, configure, compile, install.

The following is details about configuration.

install zlib

./configure –prefix=/usr/local/zlib

make && make install

install pcre

./configure –prefix=/usr/local/pcre

make && make install

install openssl

openssl yum install openssl

install nginx_mod_h264_streaming

There is no need to compile it, just uncompress it and modify some file.

tar xzvf nginx_mod_h264_streaming-2.2.7.tar.gz

modify nginx_mod_h264_streaming-2.2.7 source code

annotate ngx_http_streaming_module.c

if (r->zero_in_uri)

{

return NGX_DECLINED;

}

save and exit



install yamdi

tar xzvf yamdi-1.9.tar.gz

cd cd yamdi-1.9

make && make install

install nginx server

groupadd nginx #add user group

useradd -g nginx nginx #add user

./configure

–prefix=/usr/local/nginx \

–add-module=/usr/local/nginx_mod_h264_streaming-2.2.7 \

–with-pcre=/usr/local/pcre-7.9 \

–with-zlib=usr/local/zlib-1.2.3 \

–with-http_stub_status_module \

–with-http_ssl_module \

–with-http_flv_module \

–with-http_mp4_module \

–with-openssl \

–group=www \

–user=www \

make && make install

start nginx service

/usr/local/nginx/sbin # nginx -c /usr/local/nginx/conf/nginx.conf



you can test wheather nginx is working or not by input localhost in url bar.

If “Welcome to nginx!” appeared,this indicate that nginx installation successful.



Now, I need to adjust this streaming server,adding keyframe for flv file, and draging play

can be realized.

I have install yamdi just now,execute following command:

yamdi -i input.flv -o out.flv

add keyframe for input.flv,outputing out.flv



vim /usr/local/nginx/conf/nginx.conf

add supporting featuers for MP4 file.

just add the following code in server field.

location ~ \.flv {

flv;

}

save and exit.

I also need a flash player to support draging play.

download url:http://blogimg.chinaunix.net/blog/upfile2/100607142612.rar

uncompress this tar package and upload the uncompressed file to /usr/local/nginx/html/,

and upload flv file to …/nginx/html/video/.



Edit test page – index.html

<meta http-equiv=”Content-Type” content=”text/html; charset=UTF-8″ />
<html><body><h1>视频测试<h1><body><html></br>

<h2>好听的歌曲<h2></br>
<a href=”http://192.168.137.16/video.html” target=_blank”>雨中恋</a></br>
<a href=”http://192.168.137.16/video.html” target=_blank”>渔舟唱晚</a></br>

save and exit



Edit play page video.html

<meta http-equiv=”Content-Type” content=”text/html; charset=UTF-8″ />
<h2>付笛声-任静 雨中恋<h2></br>
<embed
type=”application/x-shockwave-flash”
name=”player”
width=”656″
height=”400″
allowscriptaccess=”always”
allowfullscreen=”true”

flashvars=”file=http://192.168.137.16/video/yuzhong1.f4v&image=http://192.168.137.16/video/yuzhong.jpg>
</embed>

save and exit!

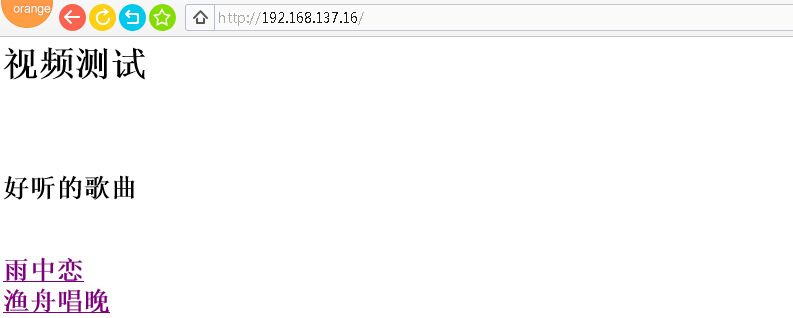

Typing http://192.168.137.16 in brower url bar

nginx3

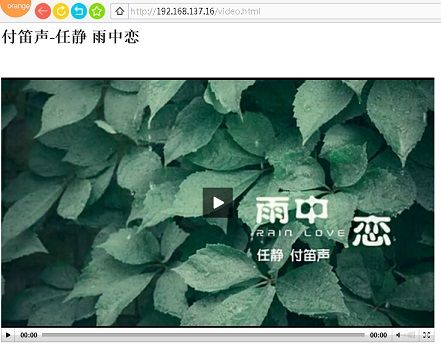

click “雨中恋”,the page will jump to preview interface

nginx4

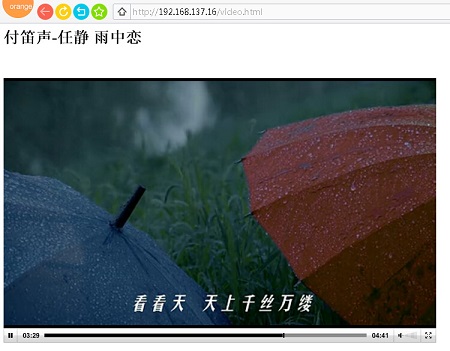

The following figure is in playing process , and can support dragging play.

nginx5

This article only demo streaming feature, not using front-end technology

because lack of time and energy.
