再做 Oracle 11gR2 RAC部署2

下面说明软件环境,就开始部署。

虚拟环境是:VMware workstation 10

虚拟机平台: OEL linux 5.5 x64

依赖包:

libaio-devel-0.3.106 (i386)

libaio-devel-0.3.106 (x86_64)

sysstat-7.0.2

unixODBC-2.2.11 (i386)

unixODBC-2.2.11 (x86_64)

unixODBC-devel-2.2.11 (i386)

unixODBC-devel-2.2.11 (x86_64)

数据库软件和集群软件:

Oracle: linux.x64_11gR2_database_1of2.zip linux.x64_11gR2_database_2of2.zip

Grid: linux.x64_11gR2_grid.zip

asm包:

oracleasm-support-2.1.3-1.el5.x86_64.rpm

oracleasm-2.6.18-194.el5-2.0.5-1.el5.x86_64.rpm

oracleasmlib-2.0.4-1.el5.x86_64.rpm



这次先配node1和node2的主机名,ip地址,最后再部署DNS服务。

主机与ip地址规划如下:

ipguihua

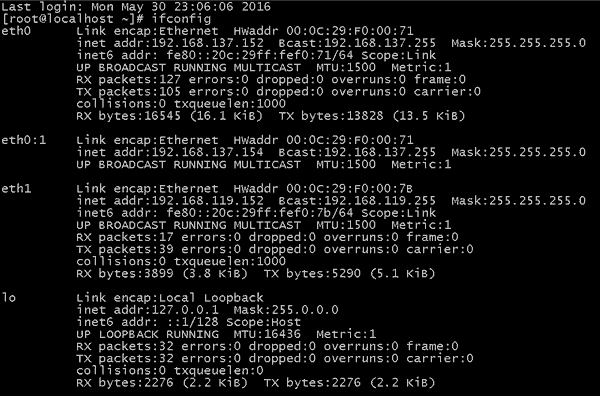

配置完成如下所示:



修改node1和node2主机名

vi /etc/hosts 编辑hosts,填写如下内容。

node1 如下:

[root@node1 ~]# cat /etc/hosts

# Do not remove the following line, or various programs

# that require network functionality will fail.

127.0.0.1 node1.localdomain node1 localhost.localdomain localhost

::1 localhost6.localdomain6 localhost6

# node1

192.168.137.151 node1.localdomain node1

192.168.137.153 node1-vip.localdomain node1-vip

192.168.119.151 node1-priv.localdomain node1-priv

# node2

192.168.137.152 node2.localdomain node2

192.168.137.154 node2-vip.localdomain node2-vip

192.168.119.152 node2-priv.localdomain node2-priv

# scan-ip

192.168.137.158 scan-cluster.localdomain scan-cluster



node2如下:

[root@node2 ~]# cat /etc/hosts

# Do not remove the following line, or various programs

# that require network functionality will fail.

127.0.0.1 node2.localdomain node2 localhost.localdomain localhost

::1 localhost6.localdomain6 localhost6

# node1

192.168.137.151 node1.localdomain node1

192.168.137.153 node1-vip.localdomain node1-vip

192.168.119.151 node1-priv.localdomain node1-priv

# node2

192.168.137.152 node2.localdomain node2

192.168.137.154 node2-vip.localdomain node2-vip

192.168.119.152 node2-priv.localdomain node2-priv

# scan-ip

192.168.137.158 scan-cluster.localdomain scan-cluster



配置DNS服务器

目的是保证scan-ip可以被解析,可以选择在node1或node2上配置,也可以单独配置,这里我单独配置。

DNS服务服务器ip地址192.168.137.61

详细过程如下:

yum install named -y 安装DNS服务

编辑各个配置文件:

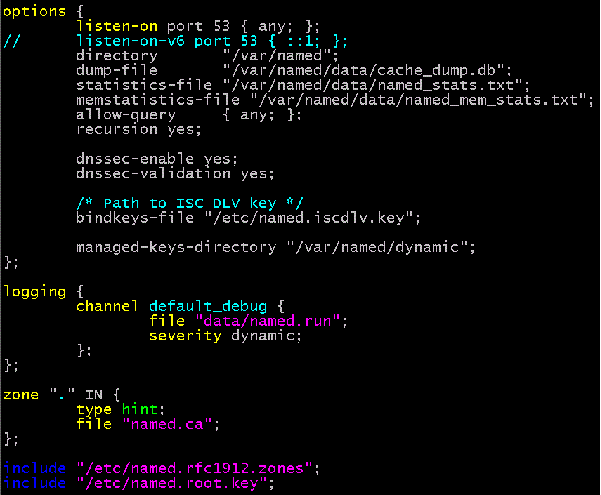

以下是主配置文件named.conf

[root@AMH ~]# vim /var/named/chroot/etc/named.conf

master_config



以下是辅助区域配置文件

[root@AMH ~]# vim /etc/named.rfc1912.zones

zone “localhost.localdomain” IN {

type master;

file “named.localhost”;

allow-update { none; };

};

zone “localdomains” IN {

type master;

file “localdomain.zone”;

allow-update { none; };

};

zone “localhost” IN {

type master;

file “named.localhost”;

allow-update { none; };

};

zone “0.in-addr.arpa” IN {

type master;

file “named.empty”;

allow-update { none; };

};

zone “138.168.192.in-addr.arpa” IN {

type master;

file “138.168.192.in-addr.arpa”;

allow-update { none; };

};

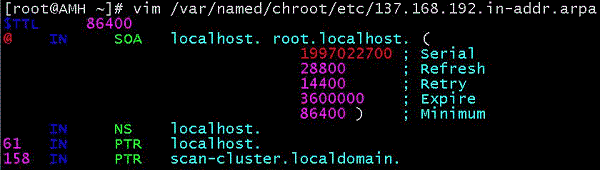

以下是反向作用域文件

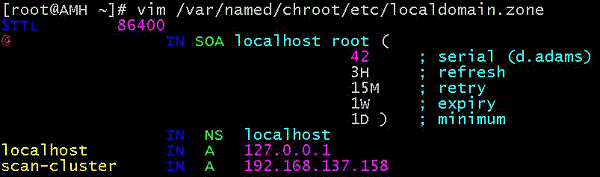

以下是正向解析域文件

配置完成后,执行/etc/init.d/named start 启动DNS服务

node1和node2在 /etc/resolv.conf中填写nameserver 192.168.137.61,保存退出.

测试DNS正反向解析

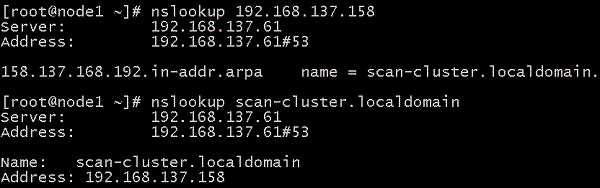

node1测试

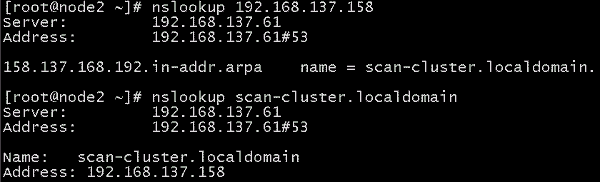

node2测试

node2reso

可见scan-ip被正常解析. 下一部分将配置RAC 集群软件 ,oracle的用户,用户组,环境变量,资源限制等等,然后创建共享磁盘。
